漂浮型护舷

产品简介

漂浮型护舷产品编号：Fendersys-FFeaturesWith good floating performance;Easy for installation and maintenance;ApplicationsCruise ships;Container vessels;Oil and gas tankers;Bulk cargo;SpecificationsNO.123456Items NameBodySteel BarFlangeSuspending RingRubberClosed Cell FoamPerformanceSizeD(mm)L(mm)60%/p>

产品型号：Fendersys-F

访问量：394

产品咨询 +86-024-54077398

产品分类

PRODUCT CLASSIFICATION

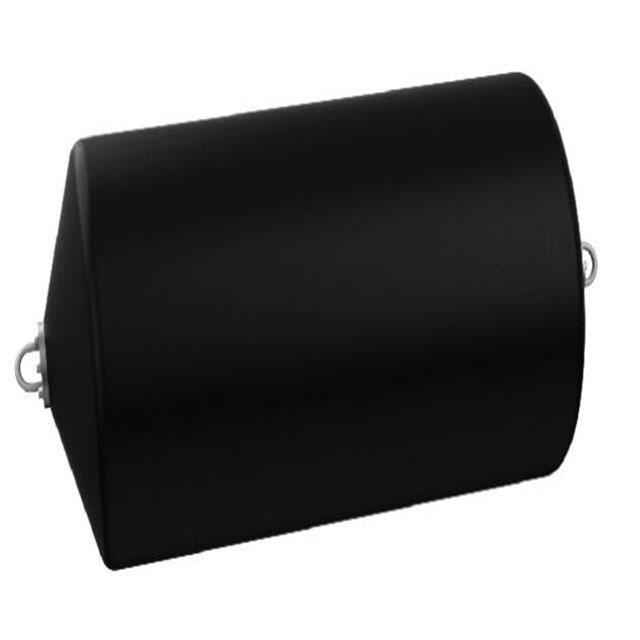

漂浮型护舷

产品编号：Fendersys-F

Features

With good floating performance;
Easy for installation and maintenance;

Applications

Cruise ships;
Container vessels;
Oil and gas tankers;
Bulk cargo;

Specifications

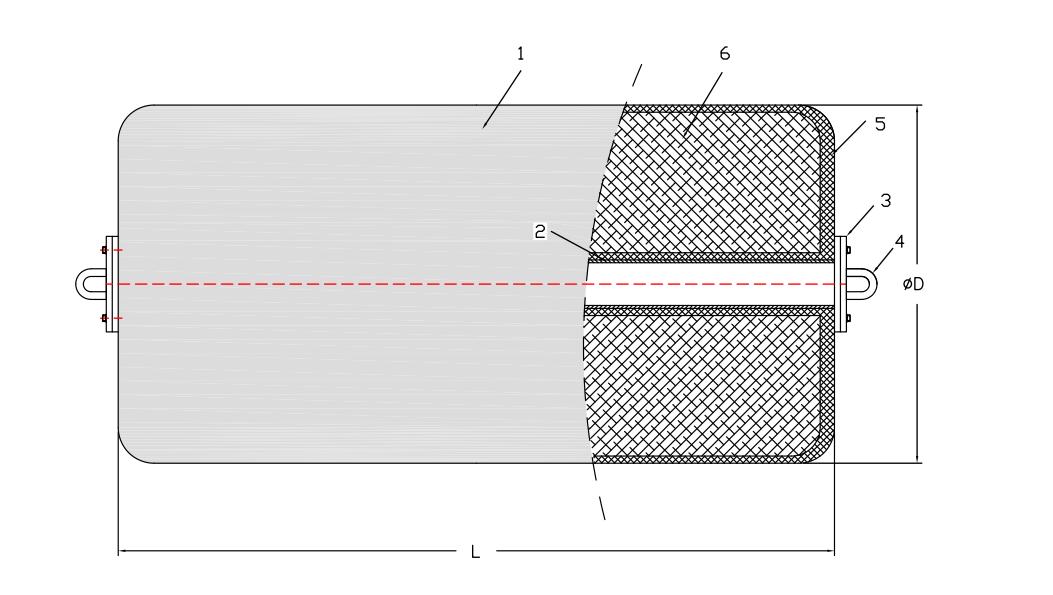

NO.	1	2	3	4	5	6
Items Name	Body	Steel Bar	Flange	Suspending Ring	Rubber	Closed Cell Foam

Performance

Size	D(mm)	L(mm)	60% Compression Deflection
Size	D(mm)	L(mm)	Reaction Force(KN)	Energy Absorption(KN.M)
300x500	300	500	13	0.49
400x600	400	600	18	1.05
500x1000	500	1000	38	2.18
600x1000	600	1000	49	3.4
1000x1000	1000	1000	137	33
1000x1500	1000	1500	206	49
1000x2000	1000	2000	273	65
1200x1500	1200	1500	256	70
1200x2000	1200	2000	336	93
1500x2500	1500	2500	520	180
1500x3000	1500	3000	626	217
1600x3000	1600	3000	860	270
2000x3500	2000	3500	992	458
2000x4000	2000	4000	1120	506
2200x4500	2200	4500	1402	682
2500x4000	2500	4000	1415	778
2500x5000	2500	5000	1735	992
3000x5000	3000	5000	2060	1422
3000x6000	3000	6000	2470	1702
3300x6500	3300	6500	2956	2248
4300x8500	4300	8500	19012	7398
4500x9000	4500	9000	21520	6732

Note: Tolerance:±10%
